Clevis Lug Links Grade 70 Australia Standard

Description

Clevis Lug Links Grade 70 Australia Standard

Clevis Lug Links Grade 70 Australia Standard manufactured by China LG adhere to the high-quality standards set by Australia. These robust and reliable links are designed to provide secure connections in heavy-duty lifting and rigging applications.
Crafted from Grade 70 steel, these Clevis Lug Links offer exceptional strength and durability, making them ideal for demanding industrial environments. The Grade 70 steel construction ensures a high Working Load Limit (WLL) and reliable performance under heavy loads.
China LG’s manufacturing expertise ensures that each Clevis Lug Link meets the stringent quality requirements of the Australia Standard, guaranteeing its reliability and safety in critical lifting operations. These links are meticulously crafted to provide a secure connection point for chains, cables, or other rigging components.
The Clevis Lug Links are versatile and can be used in a wide range of applications, including construction, mining, agriculture, and transportation. Their robust design and high-quality construction make them a dependable choice for securing loads, connecting rigging components, or creating anchor points.
With China LG’s commitment to quality and adherence to Australia Standard specifications, you can trust that these Clevis Lug Links will deliver exceptional performance and reliability when you need them most. Invest in China LG’s Grade 70 Clevis Lug Links for a durable and dependable solution for your lifting and rigging needs.

Product description

China LG™ manufactures Clevis Lug Links that meet the Grade 70 Australia Standard, ensuring top-notch quality and performance. These Clevis Lug Links, when paired with Grade 70 Chain, offer a reliable solution for securing heavy loads during transportation, with the added advantage of a loop that can be utilized for towing purposes. They are commonly employed in drag chain applications where a secure connection point is essential.
Available in sizes 8mm, 10mm, and 13mm, these Clevis Lug Links provide versatility to accommodate various load requirements. Whether you need to restrain heavy loads for transport operations or utilize the loop for towing applications, these Clevis Lug Links from China LG™ offer a dependable and efficient solution.

Technical & Feature

Technical Notes	Conform to AS 4344 standard
Material	Superior Alloy Steel
Processing	Forged
Surface Finished	Gold zinc plated,Hot Dip Galvanized
Size	8mm , 10mm , 13mm
Brand	LG™
Origin	China

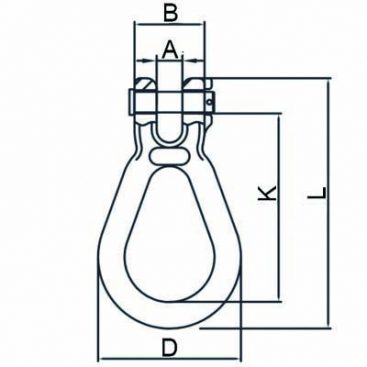

Specification-Clevis Lug Links Grade 70 Australia Standard

Part No.	Size	N.W	L.C.	B.L	B±1.5	A±0.5	D±2	K±2	L±2
		KG			mm
LGCLL08	8mm	0.555	3800	7600	35	140	54	9.4	9
LGCLL10	10mm	0.63	6000	12000	36	142	54	11	11
LGCLL13	13mm	0.93	9000	18000	48.5	203	60	17	17.5



Application:

1. Grade 70 components are intended for lashing and pulling tasks exclusively. 2. Avoid using Grade 70 chain or components for lifting purposes. 3. Utilize Grade T chain and components that are rated for lifting applications.
