Australian Standard Wire Rope Grips AS2076

Description

Australian Standard Wire Rope Grips AS2076-China LG™

Australian Standard Wire Rope Grips AS2076 are a type of wire rope grip that is designed and manufactured according to the specific requirements set forth by the Australian Standard AS2076. These grips are commonly used in various industries such as construction, mining, and marine applications.
One popular brand of Australian Standard Wire Rope Grips is China LG™, which is known for its high-quality and reliable products. These grips are made from durable materials such as stainless steel or galvanized steel, ensuring their strength and longevity in demanding working environments.
China LG™ Australian Standard Wire Rope Grips are designed to securely hold wire ropes in place, preventing slippage and ensuring the safety of workers and equipment. They are easy to install and can be used with a variety of wire rope diameters, making them a versatile and practical choice for many different applications.
Overall, Australian Standard Wire Rope Grips AS2076, such as those manufactured by China LG™, are essential tools for ensuring the safe and efficient operation of wire rope systems in a wide range of industries. Their adherence to strict standards and high-quality construction make them a reliable choice for any wire rope application.


Australian Standard Wire Rope Grips AS2076 Description

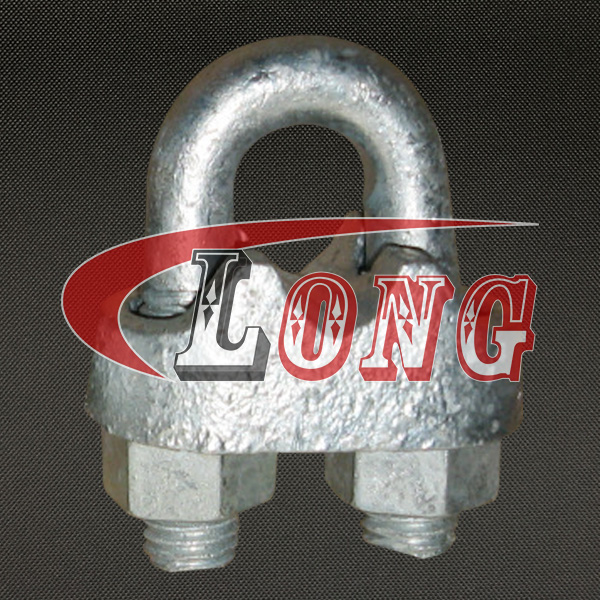

Australian Standard Wire Rope Grips AS2076 by China LG™ are designed in compliance with AS2076 standards. These grips feature a heavy-duty cast steel saddle and a high-tensile U-bolt with a larger nut size for increased tightening force.
The available sizes for Australian Standard wire rope grips range from 6mm to 52mm. The grips are finished with a hot-dipped galvanized coating on both the U-bolt and saddle for added durability and corrosion resistance.
It is important to note that these wire rope grips are not intended for lifting purposes.

Technical & Feature

Technical Notes	Wire rope grips Conform to AS2076
Surface Finished	Hot Dip Galvanized
Size	6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm22mm,26mm,28mm,32mm,36mm,40mm,44mm,52mm
Safety Factor	5:1 Technical Notes Wire rope grips Conform to AS2076 Surface Finished Hot Dip Galvanized Size 6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm22mm,26mm,28mm,32mm,36mm,40mm,44mm,52mm Safety Factor 5:1



Specification-Australian Standard Wire Rope Grips AS2076

Part No.	Size	A	B	C	D	E	F	G	100/wt
	mm								kg
LGWRC2706-6	6	14	15	20	6	12	28	26	0.04
LGWRC2706-8	8	18	19	22	8	14	34	32	0.059
LGWRC2706-10	10	22	23	28	10	17	42	40	0.112
LGWRC2706-12	12	26	30	33	12	20	50	48	0.207
LGWRC2706-14	14	28	30	33	12	21.5	52	52	0.223
LGWRC2706-16	16	34	38	44	16	26.5	66	64	0.466
LGWRC2706-18	18	26	38	44	16	27	68	68	0.499
LGWRC2706-20	20	38	38	44	16	30	70	72	0.538
LGWRC2706-22	22	40	38	44	16	31.5	72	76	0.560
LGWRC2706-26	26	50	48	55	20	37.5	90	92	1.055
LGWRC2706-28	28	52	48	55	20	39	92	96	1.075
LGWRC2706-32	32	56	48	55	20	41	96	104	1.200
LGWRC2706-36	36	64	58	66	24	48	112	120	1.941
LGWRC2706-40	40	68	58	66	24	50	116	128	2.071
LGWRC2706-44	44	73	62	90	27	52	135	150	3.000
LGWRC2706-52	52	85	69	103	M30	56	154	185	4.200
